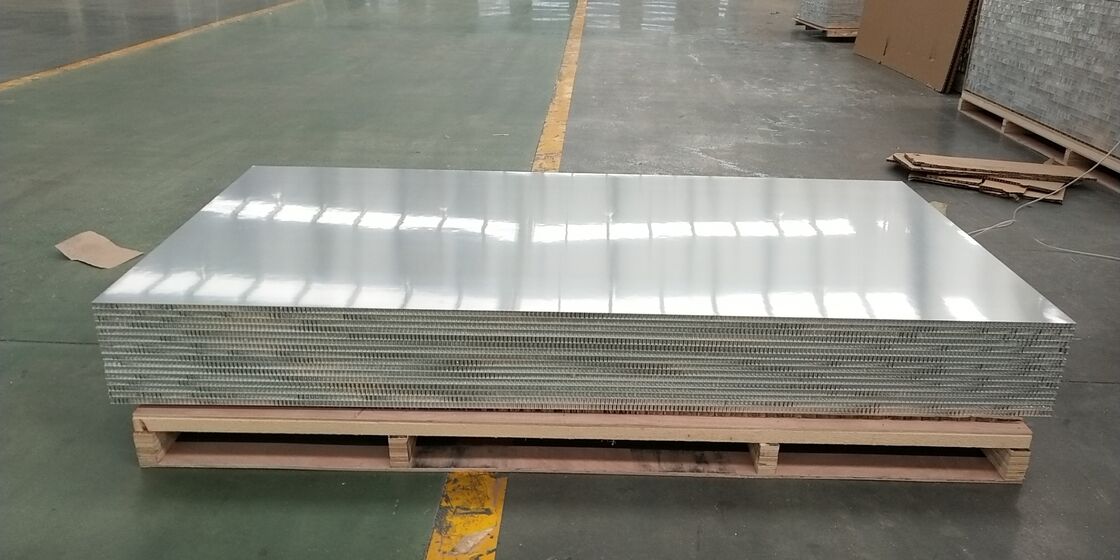

PVDF Coating Aluminium Honeycomb Composite Panel For Curtain Wall
1. Descriptions:
The aluminum honeycomb panel is composited and pressed by aluminum alloy sheets, or stainless steel sheets etc and aluminum honeycomb core with PU/ epoxy adhesive. Can do a variety of surface treatments.
Aluminum honeycomb panel is ligth weight-high strength, good hardness, sound and heat inslution. Among them, aluminum honeycomb panel is a kind of breakthrough from aerospace application to commercial application, and it is one of best environmental composite materials with perfect strength to weight ratio.
Aluminum honeycomb panel is widely used for buliding and construction industry, transportation industry and other fields.
2. Specifications:
| Aluminum honeycomb panel |
| Panel total thickness |
5mm-50mm or Customized |
| Width |
1220mm,1500mm or Customized |
| Length |
2440mm or Customized |
| Surface finish |
PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as
requested
|
| Applications |
Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core |
| Side length(mm) |
0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) |
0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy |
Al3003 |
| Supply form |
Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted |
| Technical Data Sheet |
|
Specification
|
Side length
(mm)
|
Density
(kg/m³)
|
Compression
strength (MPa)
|
L-Shear
strength (MPa)
|
W-Shear
strength (MPa)
|
| BHC3003-5-0.03 |
5 |
27 |
0.53 |
0.44 |
0.24 |
| BHC3003-5-0.04 |
5 |
31 |
0.66 |
0.53 |
0.3 |
| BHC3003-4-0.03 |
4 |
33 |
0.73 |
0.58 |
0.33 |
| BHC3003-4-0.04 |
4 |
39 |
0.98 |
0.75 |
0.43 |
| BHC3003-5-0.05 |
5 |
41 |
1.07 |
0.8 |
0.47 |
| BHC3003-3-0.03 |
3 |
44 |
1.18 |
0.89 |
0.52 |
| BHC3003-5-0.06 |
5 |
49 |
1.43 |
1.03 |
0.60 |
| BHC3003-3-0.04 |
3 |
52 |
1.6 |
1.15 |
0.67 |
| BHC3003-4-0.05 |
4 |
53 |
1.65 |
1.18 |
0.69 |
| BHC3003-4-0.06 |
4 |
61 |
2.07 |
1.48 |
0.86 |
| BHC3003-2-0.03 |
2 |
66 |
2.39 |
1.7 |
1.00 |
| BHC3003-5-0.08 |
5 |
67 |
2.45 |
1.74 |
1.02 |
| BHC3003-3-0.05 |
3 |
68 |
2.50 |
1.78 |
1.04 |
| BHC3003-2-0.04 |
2 |
77 |
3.10 |
2.18 |
1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series
|
3. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
6. Aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
