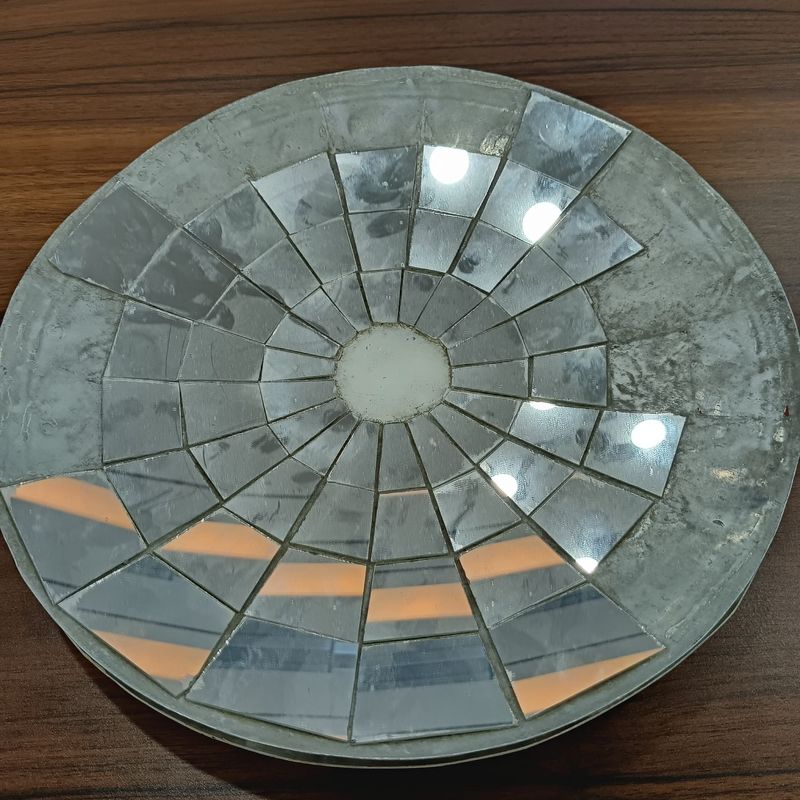

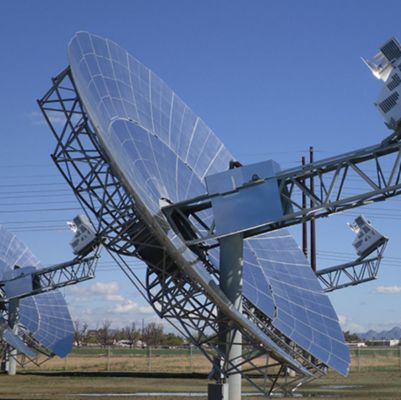

Lightweight And High-Strength Aluminum Honeycomb Panels Are Used On Solar Panels
1. Descriptions:
Aluminum honeycomb panels are increasingly used in solar panel applications due to their lightweight, high strength, and excellent structural properties. Here’s how they are applied:
1. Structural Support for Solar Panels

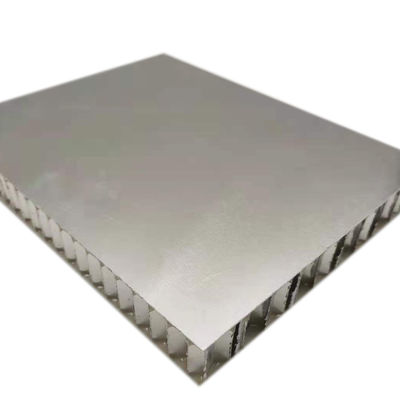

The aluminum honeycomb core, sandwiched between two thin aluminum face sheets, provides a rigid yet lightweight backing for solar panels. This helps reduce the overall weight of the solar array while maintaining structural integrity, making it ideal for rooftop installations and large solar farms where weight is a concern.
2. Enhanced Durability & Weather Resistance
The corrosion-resistant nature of aluminum makes honeycomb panels suitable for outdoor solar applications. They can withstand harsh weather conditions, including wind, rain, and UV exposure, without warping or degrading, ensuring long-term stability for solar modules.
3. Improved Heat Dissipation
Aluminum honeycomb panels help in thermal management by dissipating heat more efficiently than solid metal sheets. This prevents solar cells from overheating, improving efficiency and lifespan.
4. Lightweight & Easy Installation
Due to their high strength-to-weight ratio, aluminum honeycomb panels reduce the load on mounting structures, simplifying installation and lowering costs, especially in rooftop and floating solar systems.
5. Integration with Building-Integrated Photovoltaics (BIPV)
In architectural applications, aluminum honeycomb panels can serve as both a structural element and a mounting surface for solar cells, enabling seamless integration into facades, roofs, and canopies.
6. Floating Solar Farms
Their buoyancy and resistance to water corrosion make aluminum honeycomb panels a viable option for floating solar platforms, where lightweight yet durable support structures are essential.
By leveraging these advantages, aluminum honeycomb panels contribute to more efficient, durable, and cost-effective solar energy systems.
2. Specifications:
| Aluminum honeycomb panel |
| Panel total thickness |
5mm-50mm or Customized |
| Width |
1220mm,1500mm or Customized |
| Length |
2440mm or Customized |
| Surface finish |
PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as
requested
|
| Applications |
Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core |
| Side length(mm) |
0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) |
0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy |
Al3003 |
| Supply form |
Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted |
| Technical Data Sheet |
|
Specification
|
Side length
(mm)
|
Density
(kg/m³)
|
Compression
strength (MPa)
|
L-Shear
strength (MPa)
|
W-Shear
strength (MPa)
|
| BHC3003-5-0.03 |
5 |
27 |
0.53 |
0.44 |
0.24 |
| BHC3003-5-0.04 |
5 |
31 |
0.66 |
0.53 |
0.3 |
| BHC3003-4-0.03 |
4 |
33 |
0.73 |
0.58 |
0.33 |
| BHC3003-4-0.04 |
4 |
39 |
0.98 |
0.75 |
0.43 |
| BHC3003-5-0.05 |
5 |
41 |
1.07 |
0.8 |
0.47 |
| BHC3003-3-0.03 |
3 |
44 |
1.18 |
0.89 |
0.52 |
| BHC3003-5-0.06 |
5 |
49 |
1.43 |
1.03 |
0.60 |
| BHC3003-3-0.04 |
3 |
52 |
1.6 |
1.15 |
0.67 |
| BHC3003-4-0.05 |
4 |
53 |
1.65 |
1.18 |
0.69 |
| BHC3003-4-0.06 |
4 |
61 |
2.07 |
1.48 |
0.86 |
| BHC3003-2-0.03 |
2 |
66 |
2.39 |
1.7 |
1.00 |
| BHC3003-5-0.08 |
5 |
67 |
2.45 |
1.74 |
1.02 |
| BHC3003-3-0.05 |
3 |
68 |
2.50 |
1.78 |
1.04 |
| BHC3003-2-0.04 |
2 |
77 |
3.10 |
2.18 |
1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series
|
3. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
4. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
5. Aluminum honeycomb panel of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 2009. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory show
8. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
